\uD83E\uDD14 Problem
You find a defect LED, a cluster of defect LEDs or a short array of LED’s on your i3WALL installation.
\uD83C\uDF31 Solution
Use the magnetic tool to clip on an LED module and gently pull out the faulty LED module.
Make sure to power off the i3WALL completely before you start the procedure.
|
1 |
|

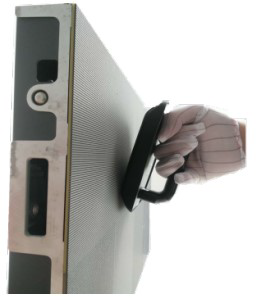

Locate the faulty LED module and attached the bottom side bezel of the magnetic tool on the bottom side of the faulty LED module. |
|
2 |
|

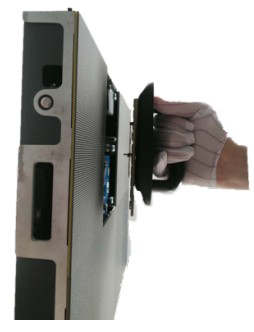

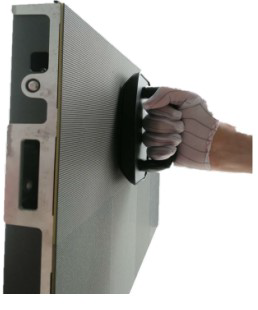

Move your magnetic tool slowly until it is flat on the faulty LED module. In a straight direction, gently pull the magnetic tool towards you. The LED module will come out of the installation. |
|
3 |
|

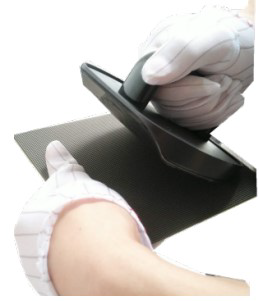

Hold the LED module with your full hand and rotate the magnetic tool off the LED module. |
|
4 |
|
Install the new LED module in the same direction as indicated by the arrow. |
