i3TOUCH X-ONE how to replace the wifi module


(1) Make sure the display is switched to power off.

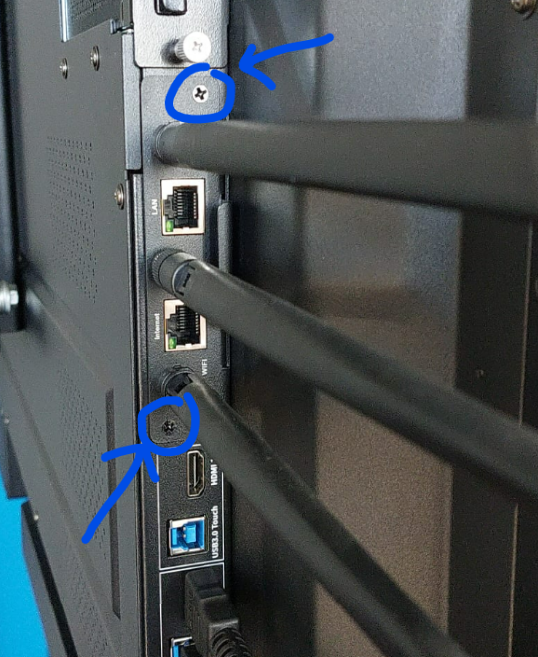

(2) Unscrew the 2 screws from the wifi module.


(3) Slide out the wifi module

(4) Slide in the wifi module. Pay attention to match the casing cut-outs.

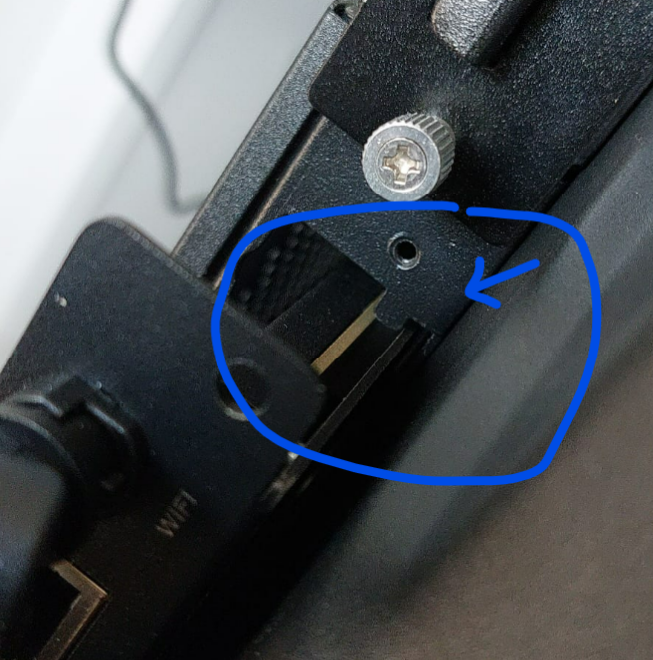

top;

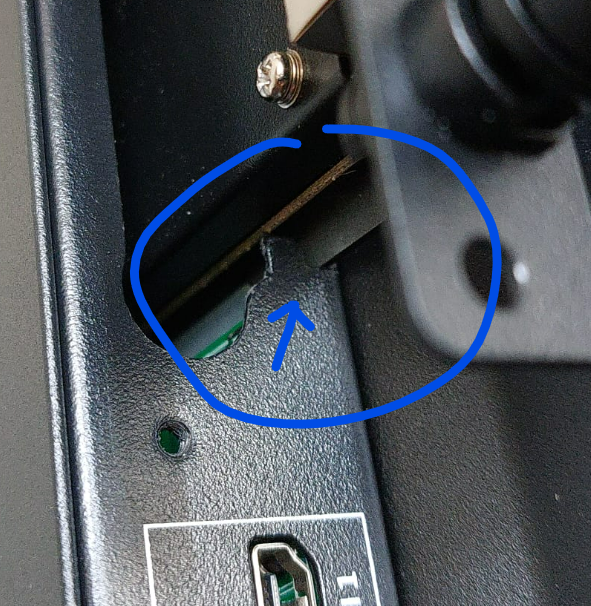

bottom
