Share your laptop display using the Wireless Sharing app AllSync

The AllSync app is your launchpad for wireless sharing on i3CONNECT interactive displays. It allows you to share using the AllSync computer, tablet or mobile device app, the AllSync Transmitter Dongle or using the native sharing protocols of Android, Windows and Apple.

Quick Instruction

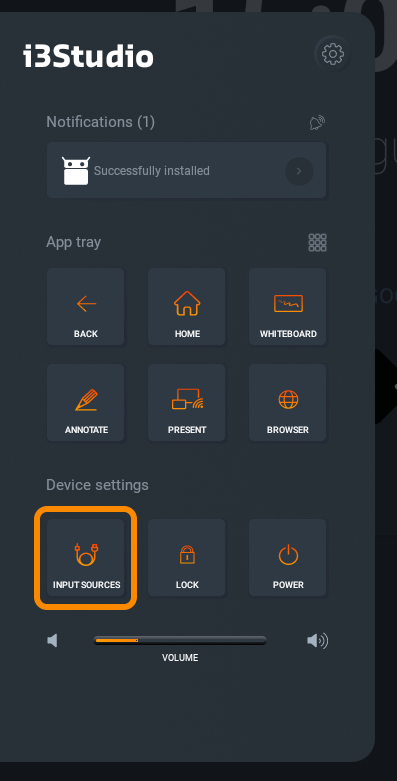

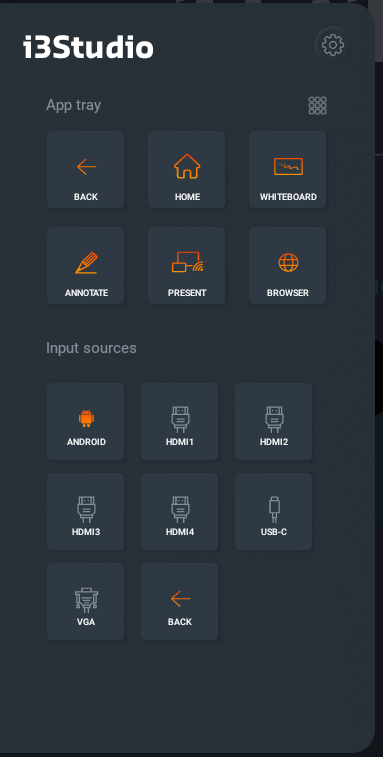

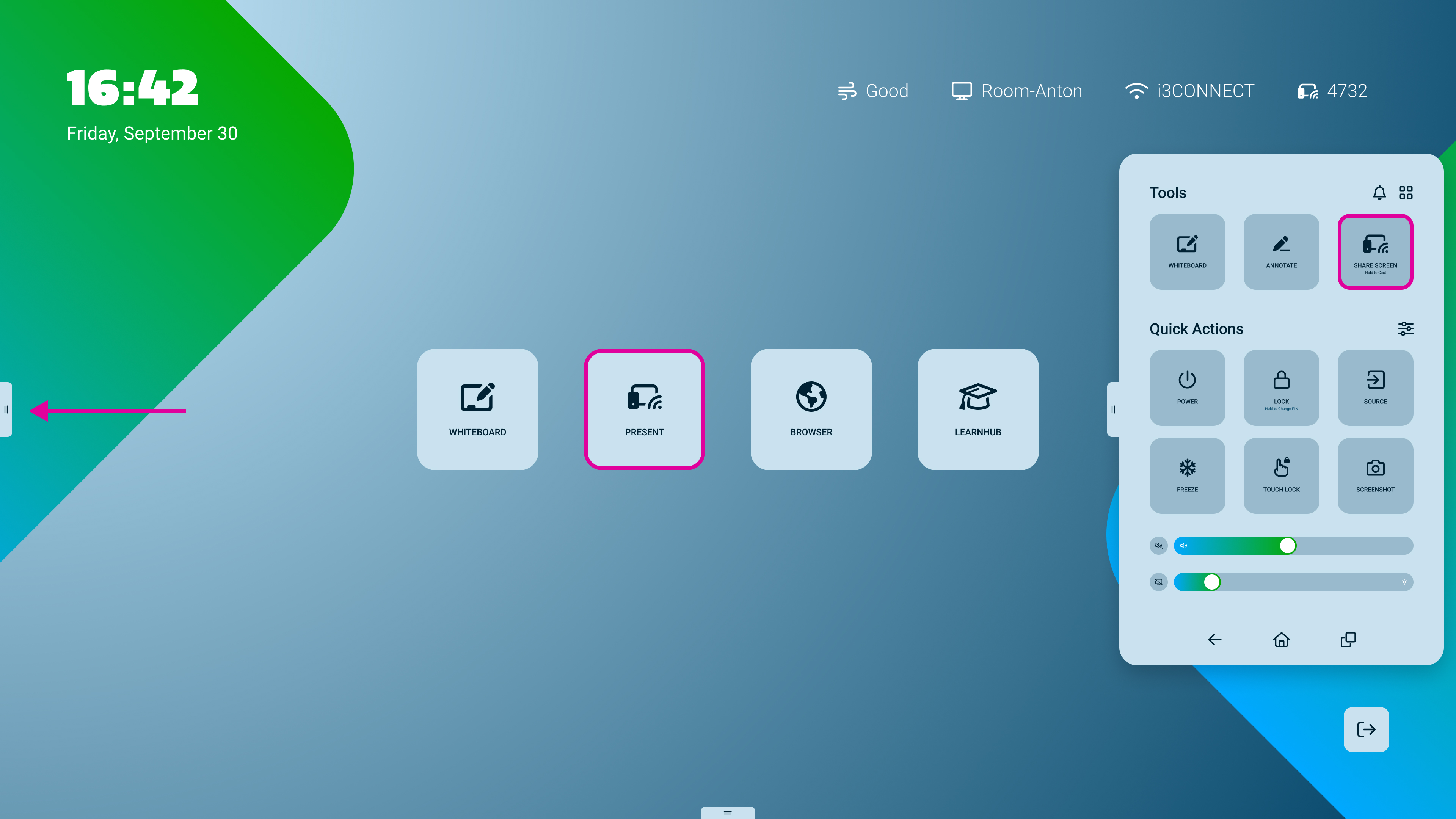

Open the AllSync display app by pressing on the Present tile on the home-screen or from the side-bar.

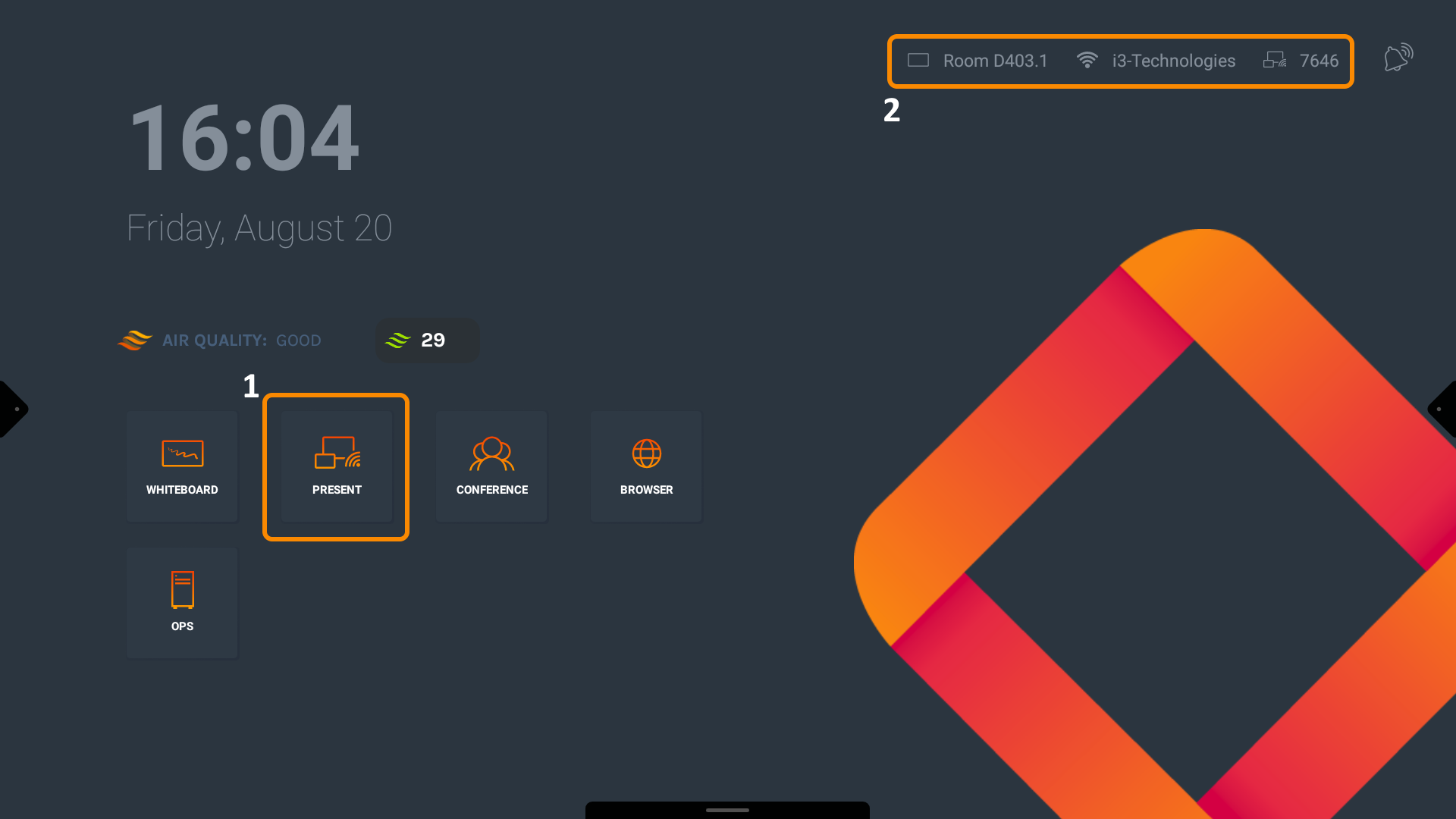

Quick tip! From the home-screen you can see your PIN code in the top right corner, so you don’t even need to open the display-app. Tapping on this will open the display-app though ;)

Tap on the button at the bottom of the screen to select which sharing tool you will use.
1. AllSync: is if you use our app to share.
2. Android / Chrome: is for sharing natively (without apps or drivers) using Android or ChromeOS devices, as well as Google Chrome.
3. Windows: is for sharing natively (without apps or drivers) using Windows PC tablets / laptops.
4. Apple: is for sharing natively (without apps or drivers) using Macbooks, iPhones and iPads.
5. Dongle: is for sharing intuitively by plugging a dongle into your laptop; no installation needed.
Follow the on-screen instructions.

We always recommend installing AllSync for the most stable experience. Unfortunately this option is not always possible. Luckily, AllSync also allows you to share using the built-in wireless sharing features of your operating system. See the overview below

Operating system	Sharing Protocols
Windows OS	Miracast and Google Cast
macOS (Macbook, iMac, Mac)	Airplay and Google Cast
iOS (iPhone, iPad)	Airplay only
Android	Miracast and Google Cast

Complete Guides

For each of these sharing protocols we have some guides!

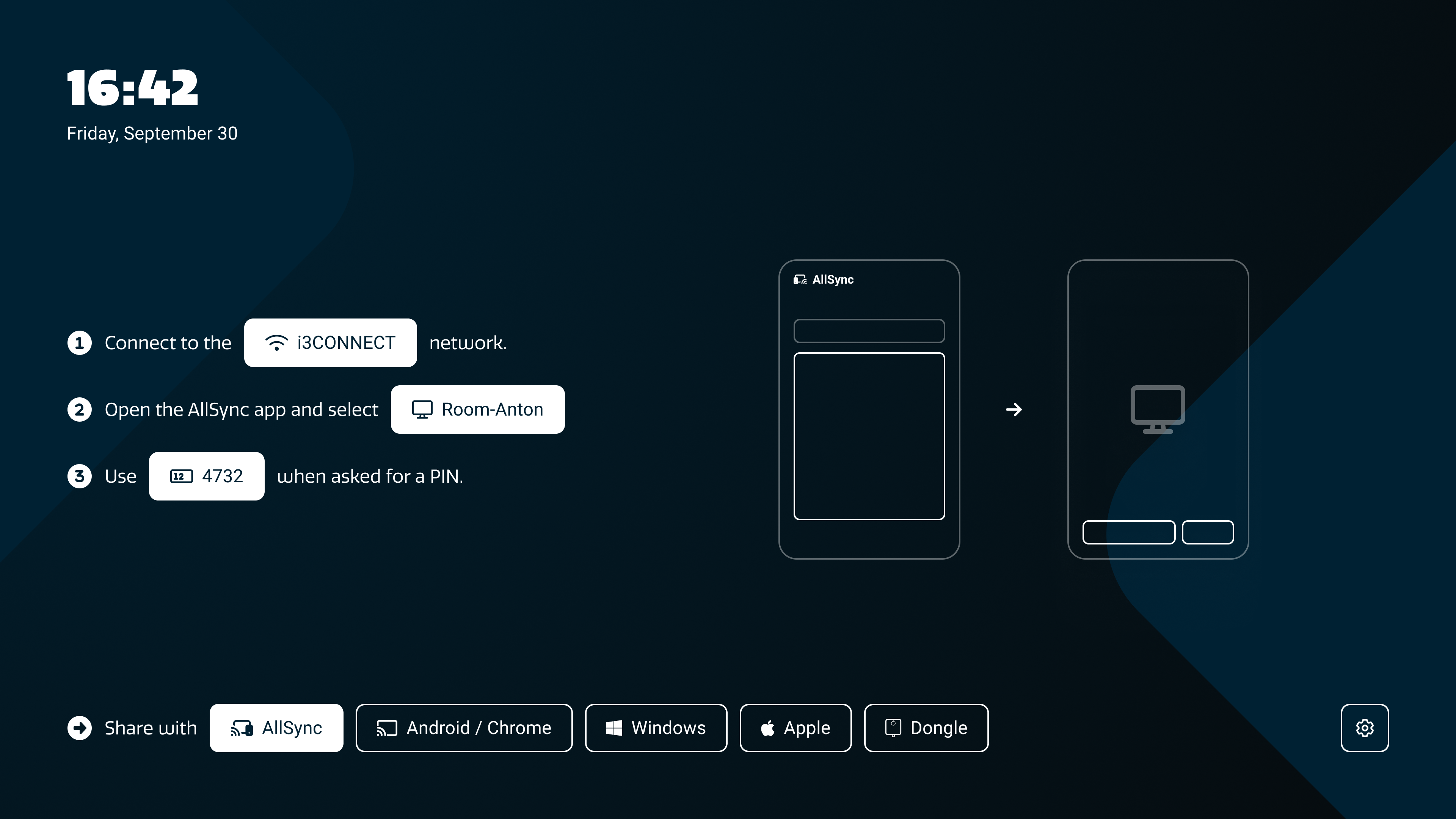

AllSync instructions

Connect to the same network.
Open the AllSync app and select the Display.
Optional: Use the 4-digit code when asked for a PIN.
Press the Play button to start sharing

If you do not have it yet, Download the AllSync app here.

For a more complete guide of AllSync sharing visit this article.

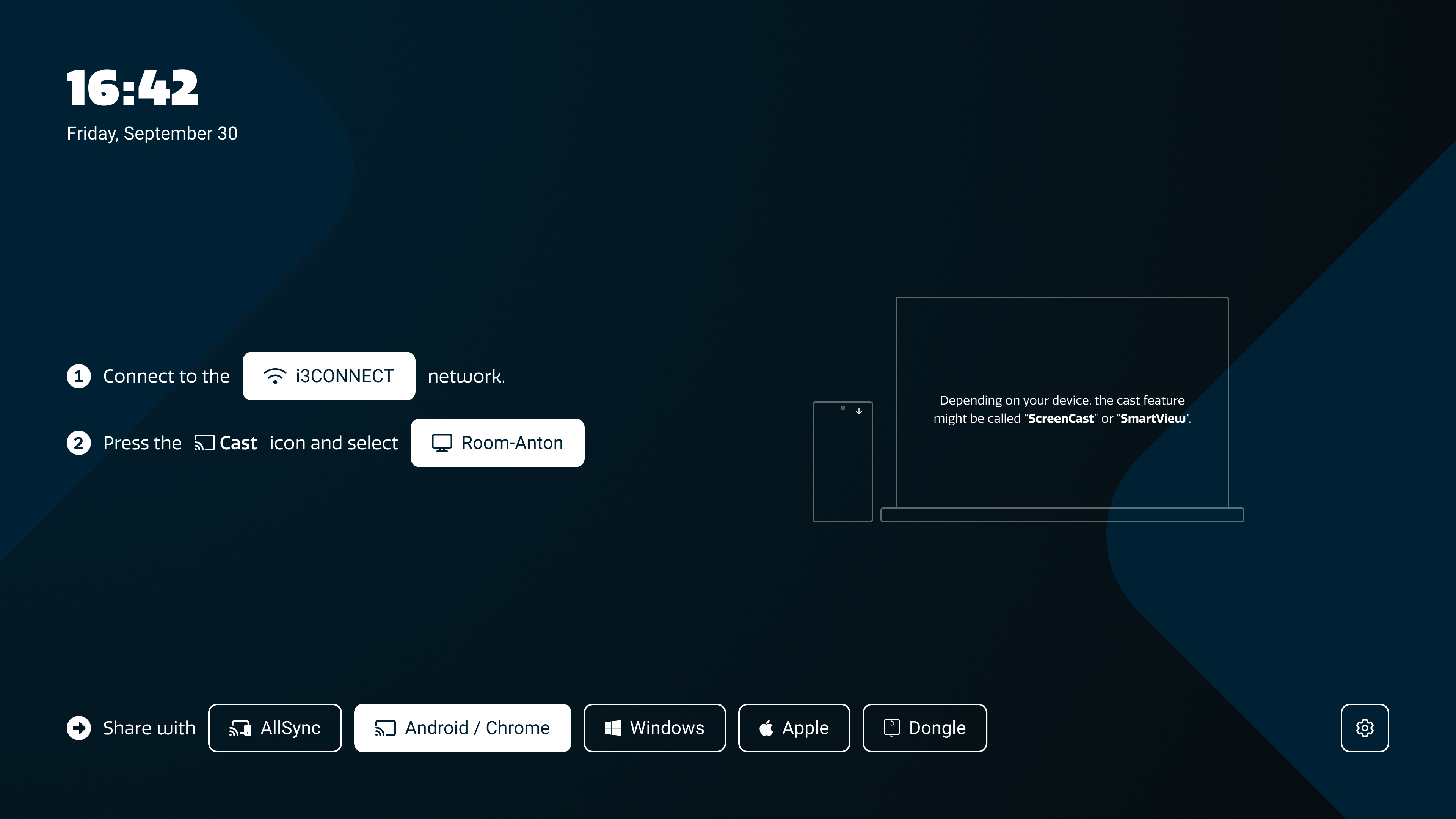

Android / Chrome OS instructions

Connect to the same network.
Press the Cast icon and select the Display.

Depending on your device, the cast feature might be called ‘Screencast’ or ‘SmartView’.

For a more complete guide of Google Cast visit this article.

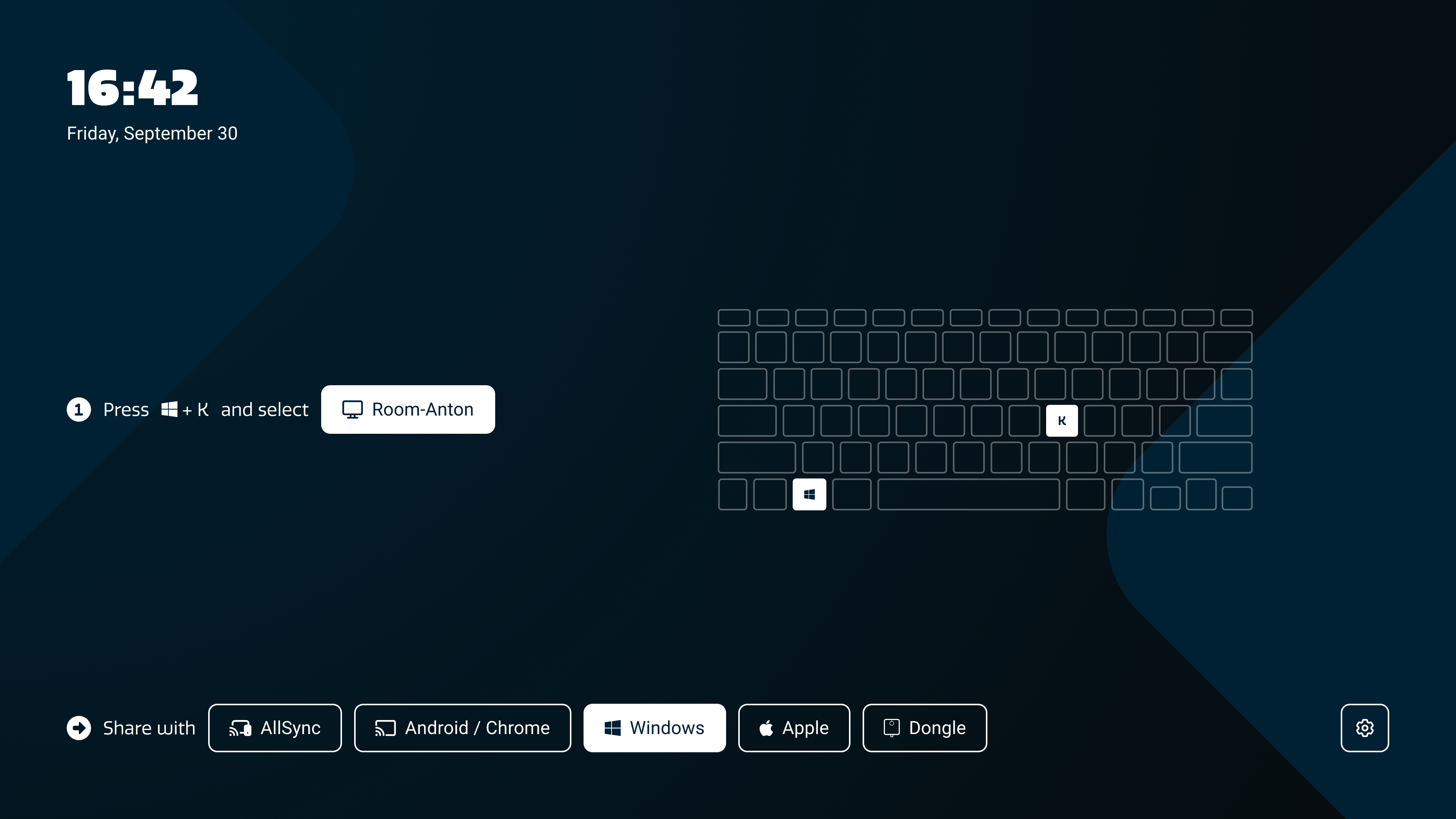

Windows instructions

Press on (the Windows button) + K and select the Display.

You don’t need to be on the same network with Windows because Windows uses Miracast, which connects directly to the display and not over the internet.

For a more complete guide of Miracast sharing visit this article.

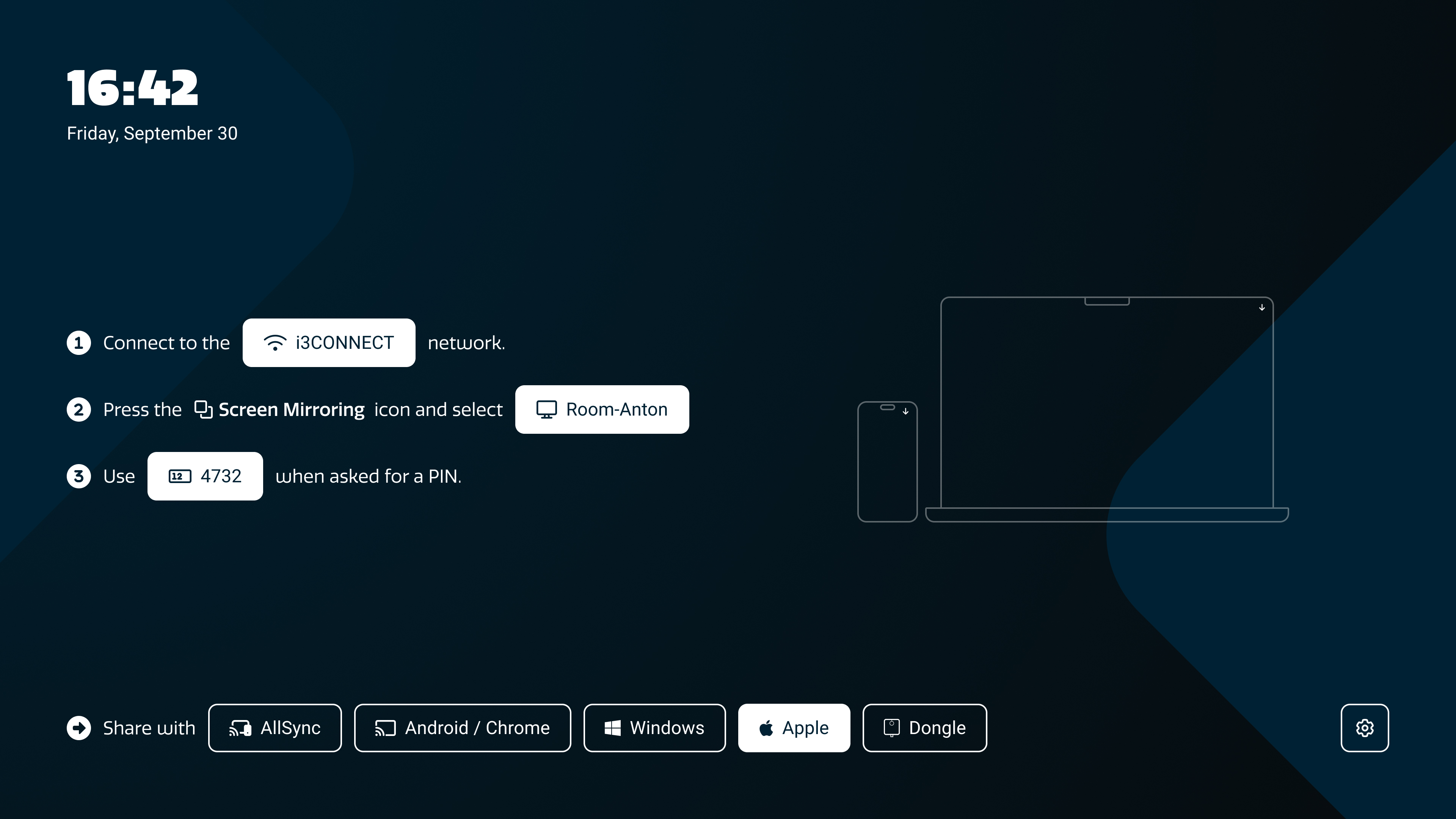

Apple (Mac, iPad, and iPhone) instructions

Connect to the same network.
Press the Screen Mirroring icon and select the Display.
Optional: Use the 4-digit code when asked for a PIN.

For a more complete guide of Apple Airplay visit this article.

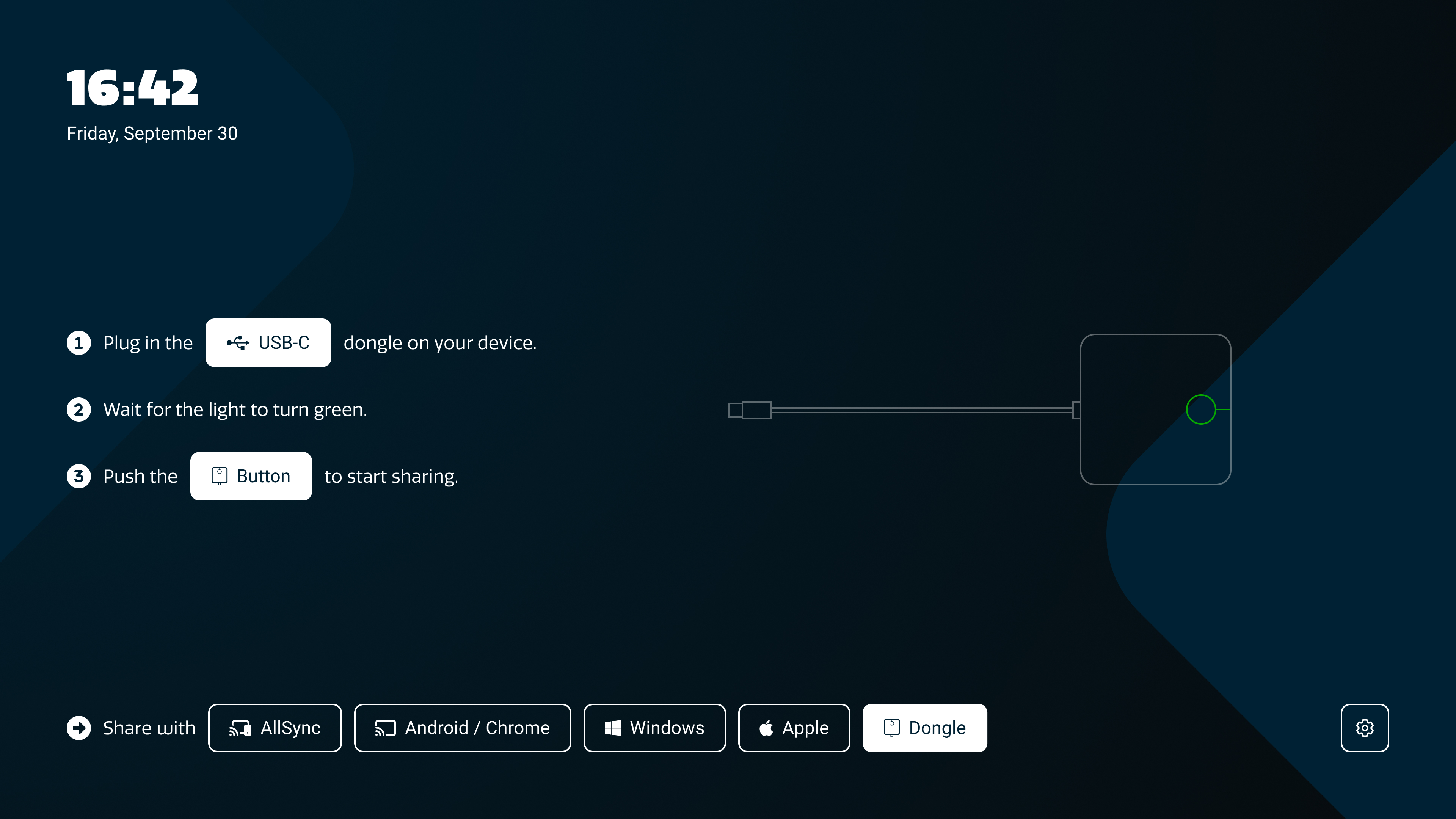

AllSync Dongle instructions

Plug in the USB-C dongle on your device. (This may differ depending on your dongle)
Wait for the light to turn green.
Push the Button to start sharing.

If the Dongle is not paired yet, please follow this guide:
Pair a Transmitter Dongle with a display using AllSync

Troubleshooting

If your AllSync app appears different…
- You are likely using an older version or another sharing tool. If that is the case, use best judgement to translate the steps in this guide to your interface
- Update the display app from the i3STORE on the display or via Cortex.
- Update your PC app by downloading it from this page:
  Download the AllSync screen sharing app
If you cannot find the device name or PIN, restart the display or check network connections.
