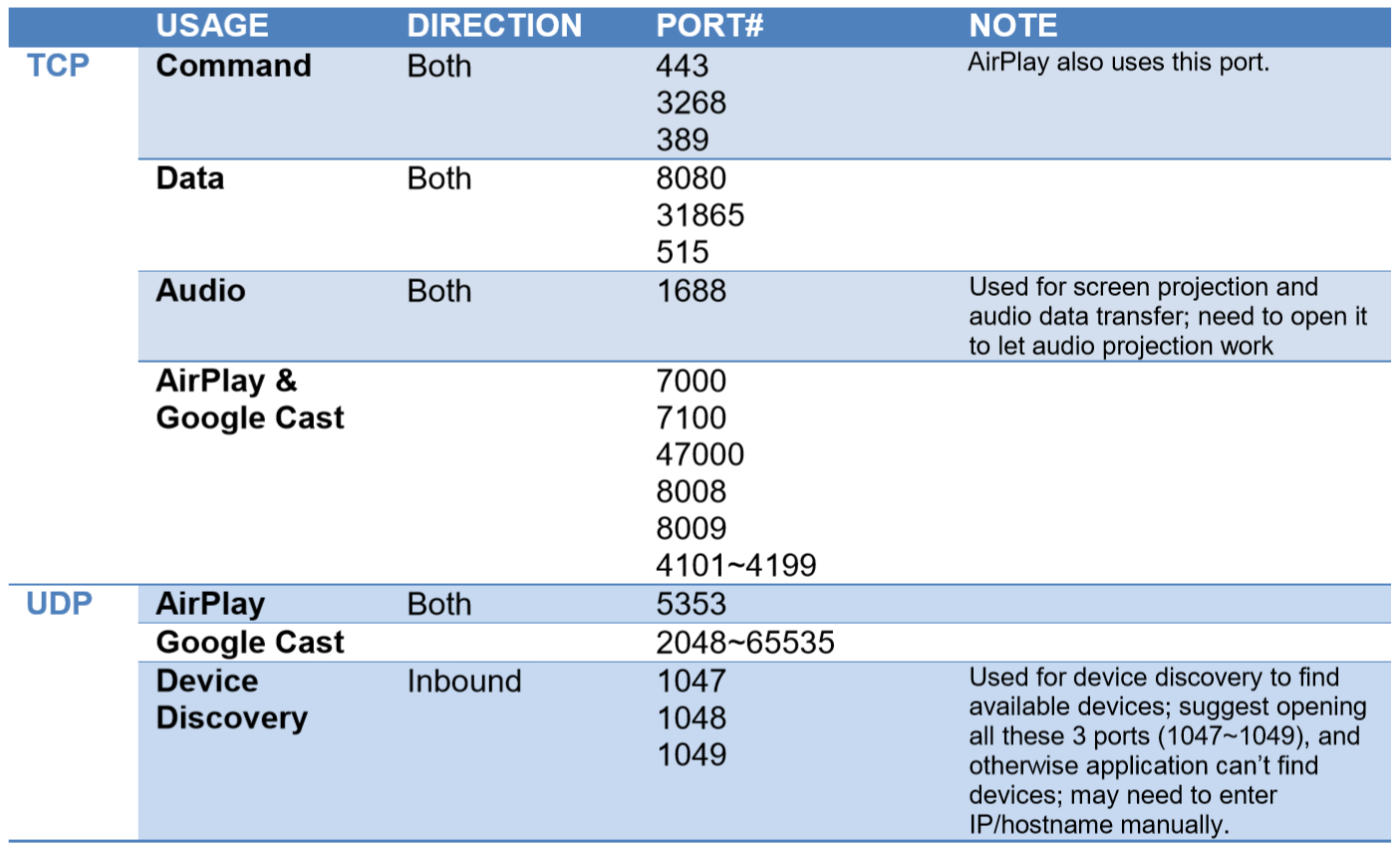

MirrorOP, Airplay* & Google Cast* is the software/technology that the Laser Nova uses for wireless display sharing. To be able to use these technologies, make sure the following ports and protocols are allowed in your network:
|
|
Usage |
Direction |
Port # |
Note |
|---|---|---|---|---|
|
TCP |
Command |
Both |
443, 3268, 389 |
Airplay also uses this port. |
|
|
Data |
Both |
8080, 31865, 515 |
|
|
|
Audio |
Both |
1688 |
Used for screen protection and audio data transfer; need to open it to let audio projection work. |
|
|
AirPlay & Google Cast |
|
7000, 7100, 47000, 8008, 8009, 4101~4199 |
|
|
UDP |
Airplay |
Both |
5353 |
|
|
|
Google Cast |
|
2048~65535 |
|
|
|
Device Discovery |
Inbound |
1047, 1048, 1049 |
Used for device discovery to find available devices; suggest opening all these 3 ports (1047~1049), and otherwise application can’t find devices; may need to enter IP/hostname manually |
* Airplay & Google Cast are optional and will need an additional Extended Streaming license. Please contact your sales representative for more information.
