Product number
10080351 - Wallom3 mobile lift - Black (RAL9005)
Flexible and easy to maneuver lift solution for CTOUCH displays
Mounting system
-
Electrical lift system by Linak®
-
Floor stand: 4 TENTE wheels. 2 with brake
-
Colour of lift: Aluminium grey and black
-
Max. Weight: 150 kg
-
Mains voltage: 240V AC, 50Hz - Euro Plug
Features
-
Height adjustment: Electrical
-
Control panel: Up and down 3 programmable buttons to set your personalized working height
-
Lift range: 500mm
-
Lift speed: 20 mm/s - From bottom to top in 25 sec.
-
Lockable storage space on the backside
-
VESA dimensions:
400 mm (W) x 400 mm (H)
600 mm (W) x 400 mm (H)
400 mm (W) x 600 mm (H)
800 mm (W) x 400 mm (H)
800 mm (W) x 600 mm (H)
Quality & safety
-
CE certified
Warranty
-
5 years warranty based on carry-in (limited warranty on wheels)
Logistics dimensions
-
Box size (mm): 1179 (W) x 684 (D) x 278 (H)
-
Box weight (kg): 48
-
EAN:
8719481481643
About the Wallom3 lift
The Wallom3 is built using a high quality, solid lift system with a linear actuator built by LINAK®.
-
Smooth and soundless lift system
-
Robust and strong design
-
Lifetime lift (cycle up & down): 10.000 times
About the Wallom3 castors
CTOUCH knows that if you choose a mobile lift it should be easy to maneuver the unit. Therefore we chose the state-of-the-art brand castors from TENTE®, one of the world’s best manufacturers wheels and castors. The swivel castors, of which two have a wheel brake:
-
Are made of high quality synthetic material
-
Turns & rolls smoothly, almost soundless
-
Leaves no marks while moving
-
Are corrosion protected, for a long life span

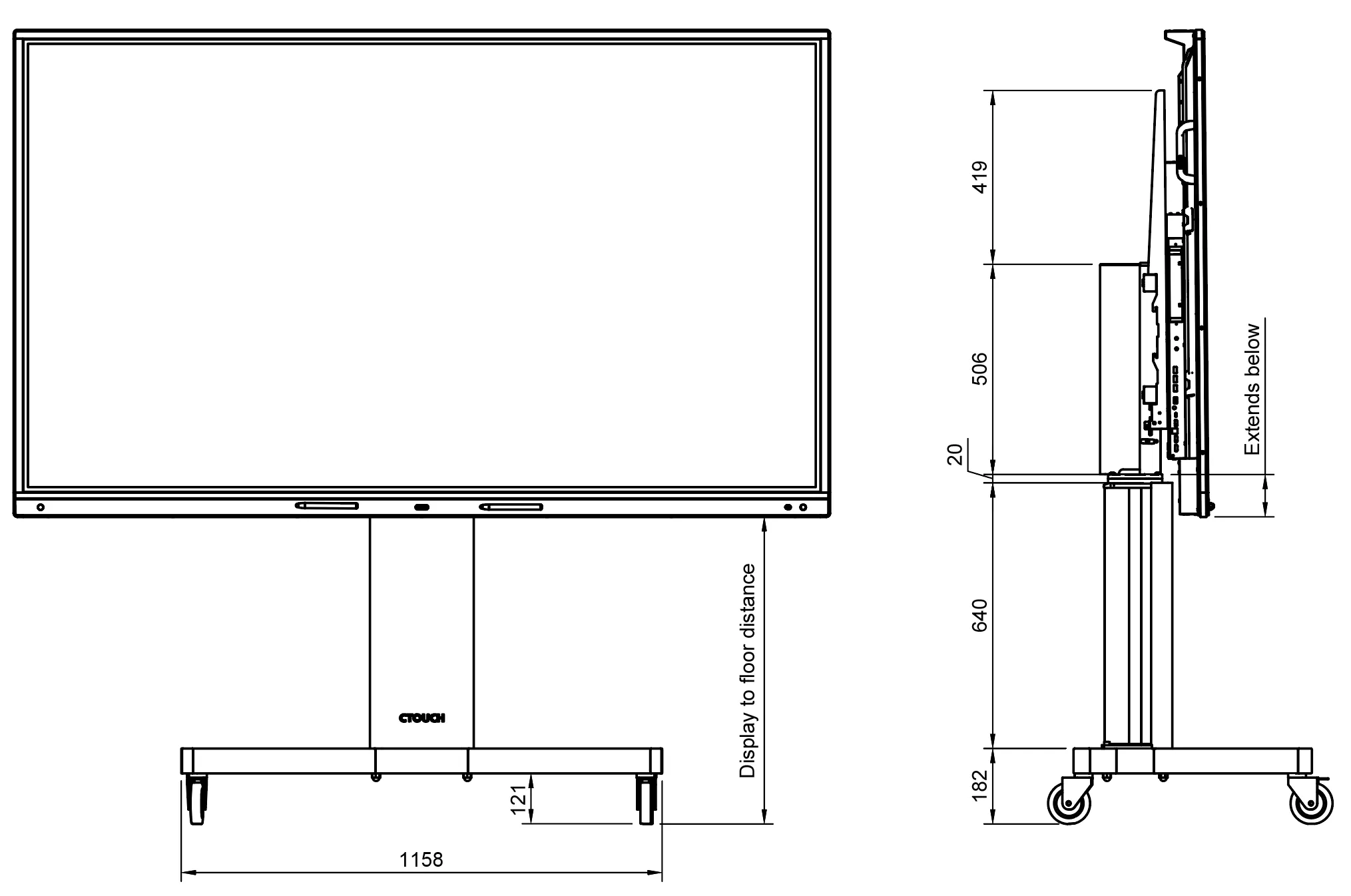

Distance from the floor
Important: ensure at least 10cm extra on all sides of the attached display for the entire lift travel distance. With 55 inch, this includes the VESA arms that extend past the display.
Disclaimer: All weights and dimensions are approximate. Product specifications are subject to change without prior notification. While the information on this website has been verified to the best of our abilities, we cannot guarantee that there are no mistakes or errors
|
|
Bottom of the display in the lowest position |
Top of the display in the lowest position |
Display VESA (Top) is the ___th hole from the top on the Wallom3 VESA arms |
|---|---|---|---|
|
Neo - 75 inch |
727 mm |
1760 mm |
Bottom (26th) |
|
Neo - 86 inch |
739 mm |
1913 mm |
Bottom (26th) |
|
Canvas - 55 inch |
835 mm |
1643 mm |
Bottom (26th) - VESA arms extend beyond the top of the display 145 mm |
|
Canvas - 65 inch |
805 mm |
1723 mm |
20th - VESA arms extend beyond the top of the display 56mm |
|
Canvas - 75 inch |
808 mm |
1847 mm |
7th |
|
Canvas - 86 inch |
816 mm |
1995 mm |
3rd |
|
Riva - 55 inch |
847 mm |
1618 mm |
Bottom (26th) - VESA arms extend beyond the top of the display 149 mm |
|
Riva - 65 inch |
816 mm |
1712 mm |
14th - VESA arms extend beyond the top of the display 149 mm |
|
Riva - 75 inch |
816 mm |
1836 mm |
7th |
|
Riva - 86 inch |
812 mm |
1969 mm |
4th |
